SPECIFICATIONS
High-concerned chemical: None
Voltage: 220V
Specifications:
Type laboratory power supply
Model: HPS3010
Output power: 300W
Output voltage: 0 - 30V
Output current: 0 - 10A
Color: Black
Material: Plastic
Input power: AC 230V/115V±10%; 50Hz/60Hz
Working temperature: 0℃~40℃; Relative Humidity: <80%RH
Storage temperature: -10℃~70℃; Relative Humidity: <70%RH
Mode: Constant Voltage (C-V), Constant Current (CC)
Voltage Stability: 0.1%±3mV
Load Stability: 0.2%±3mV
Ripple Voltage: ≤0.5%Vp-P
Current Stability: 0.1%±3mA
Load Stability: 0.2%±3mA
Ripple Current: ≤0.5%Vp-P
Recovery Time: ≤500μs
Temperature Coefficient: ≤100ppm/°C

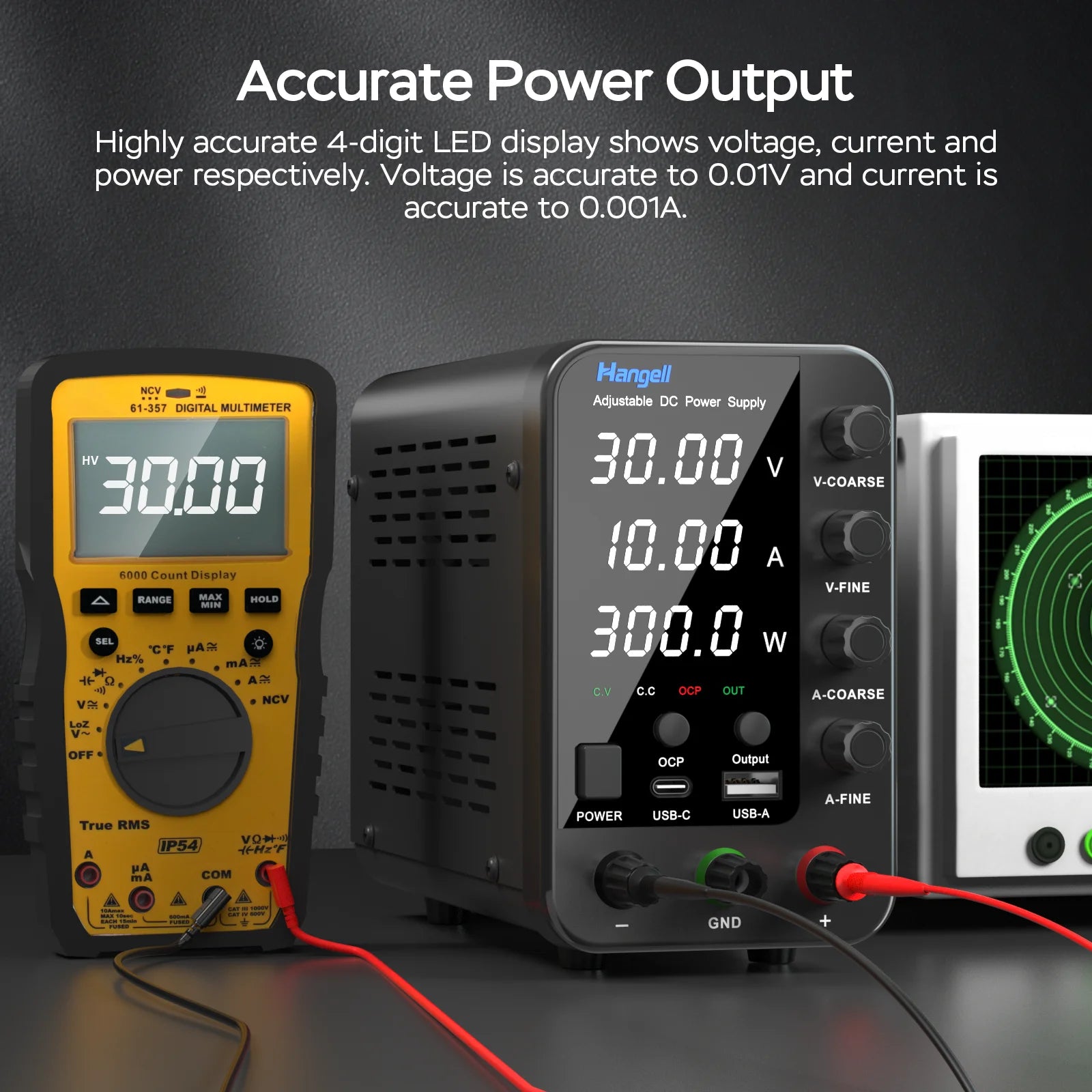

Display Accuracy: 0.5%±3words
Display Resolution: Voltage 0.01V, Current 0001A

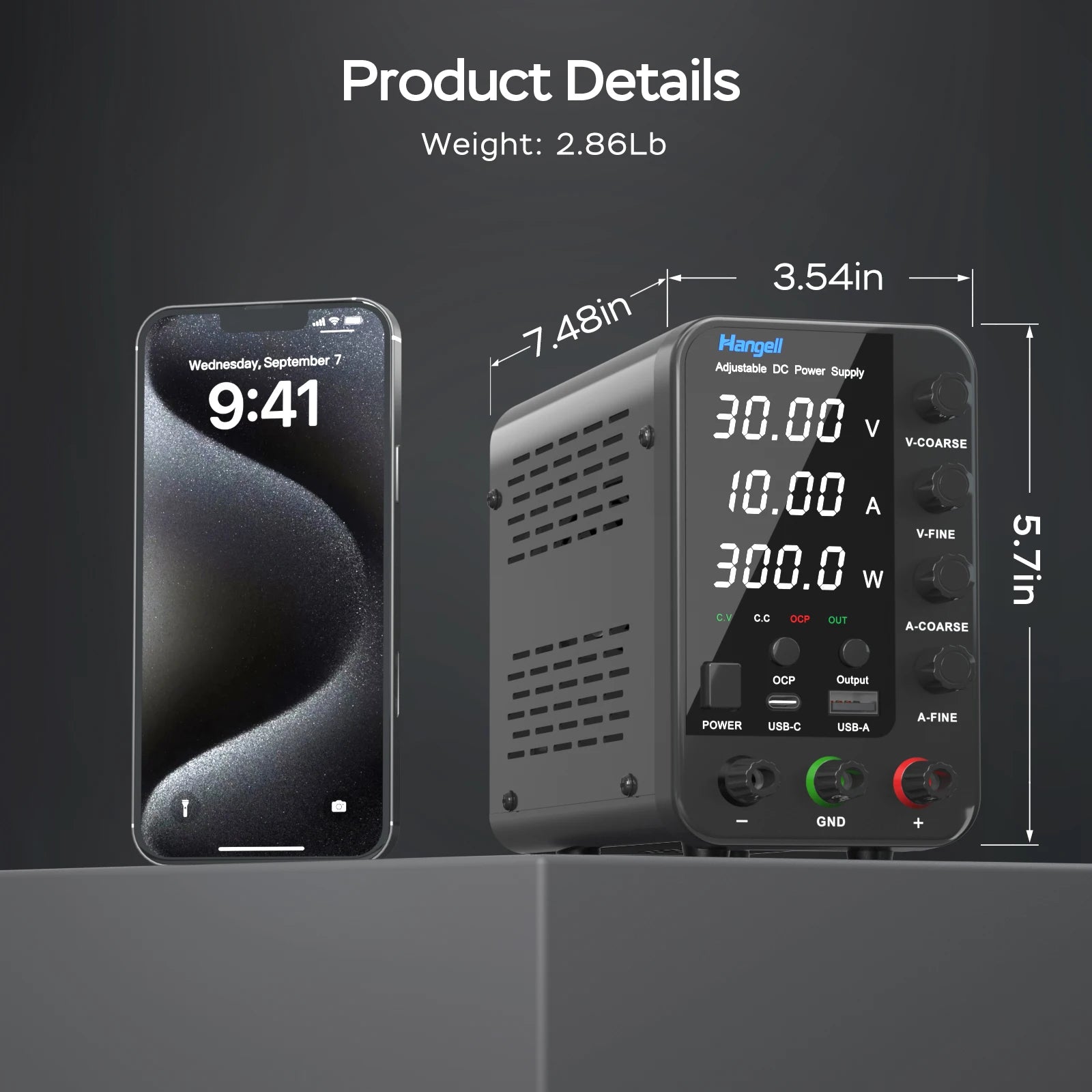

Size: 210*145*80 mm
Weight: 1200 g
Package weight: 1600 g
Package size: 30*19*13 cm
